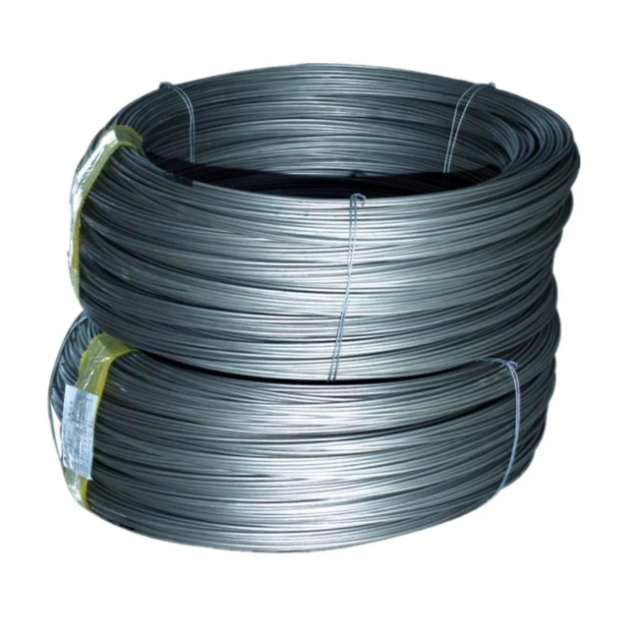

Alloy Steel Wire / Rod
Alloy steel wire refers to steel wire made from alloy steel rods that are combined with elements such as chromium (Cr), molybdenum (Mo), nickel (Ni), silicon (Si), or vanadium (V) to enhance specific properties like strength, toughness, hardness, wear resistance, and heat resistance. These alloying elements significantly improve the wire’s mechanical and chemical performance, especially under high load, high temperature, or corrosive environments.
Alloy steel wires are widely used in automotive components, heavy machinery, springs, oil & gas equipment, aerospace parts, and other industrial applications that demand superior performance.
Product Features & Processing
| Attribute |
Description |
| Raw Material |
Alloy steel rod with elements such as Cr, Mo, Ni, Si, V |
| Production Process |
Hot rolling or cold drawing → Annealing or quenching → Surface treatment |
| Optional Surface Treatments |
Phosphating, black oxide, oiling, zinc-coating, copper plating |
| Strength |
Very high tensile strength; maintains integrity under dynamic or thermal stress |
| Elasticity & Toughness |
Excellent fatigue resistance and toughness under cyclic loading |
| Standards |
ASTM A230, ASTM A229, SAE J403, GB/T 4356, JIS G3506, DIN 17223 |
Common Carbon Steel Wire Types
| Type |
Description |
| Cold-Drawn Steel Wire |
Produced at room temperature with tight dimensional tolerance and smooth finish |
| Stress-Relieved Wire |
Heat-treated after drawing to relieve internal stress and improve stability |
| Low-Relaxation Wire |
Used in prestressed concrete; retains tension over time |
| Galvanized Steel Wire |
Hot-dip or electro-galvanized for enhanced corrosion resistance |
| Notched Wire |
Surface-treated with notches to improve bonding performance in concrete |
Product Specifications
| Item |
Specification |
| Product Name |
Carbon Steel Wire Coil / High Carbon Steel Wire / Steel Wire Rod |
| Material |
Q195, Q235, Q345, 45#, 65#, 70#, 80#, 82B; ASTM A53 Gr.A/B; ST37, ST52 |
| Wire Diameter |
0.1 mm – 18 mm (customizable) |
| Length |
In coils or straightened (1 m to 14 m), or cut-to-length per request |
| Tensile Strength |
400–2000 MPa depending on grade and treatment |
| Surface Finish |
Bright, galvanized, black annealed, phosphated, copper-plated |
| Processing Techniques |
Cold-drawn, hot-rolled, heat-treated, pickled, coated |
| Standards Compliance |
GB/T 4357, GB/T 5224, ASTM A82/A510, EN 10016, JIS G3505 |
Mechanical Properties (Typical Range)
| Property |
Value Range (Depending on Grade & Process) |
| Tensile Strength |
400–2000 MPa |
| Yield Strength |
250–1600 MPa |
| Elongation |
4% – 15% |
| Hardness |
140–300 HB |
| Fatigue Resistance |
Excellent (especially for high-strength spring wire) |
Applications
Carbon steel wire and rod are used in a wide range of industries and structures:
-
Construction: Reinforcement wires, tie wires, mesh, prestressed concrete tendons
-
Infrastructure: Bridge cables, tensioning elements, guardrail wires
-
Manufacturing: Nails, screws, bolts, fasteners, springs
-
Agriculture: Barbed wire, fencing, vineyard and greenhouse wires
-
Automotive: Springs, clutch wires, control cables
-
Packaging: Bale ties, wire straps
-
Industrial: Wire rope cores, mesh belts, conveyor wires
Available Grades and Their Characteristics
| Grade |
Description |
Typical Use |
Characteristics |
| Q195 |
Low carbon steel |
Wire mesh, binding wire |
Good ductility and workability |
| Q235 |
Low-carbon steel, general purpose |
Construction wire, rebar tie |
Moderate strength, good formability |
| 45# |
Medium carbon steel |
Mechanical parts, wires for tools |
Better strength and wear resistance |
| 65# / 70# |
High carbon steel |
Springs, nails, high-strength wires |
High hardness and wear resistance |
| 80# |
High-strength prestressed wire |
Prestressed concrete, cable wires |
High tensile, good fatigue life |
| 82B |
High carbon steel for springs |
Cold-drawn springs, tension wire |
Excellent strength and cold forming capability |
Surface Treatment Options
| Surface Type |
Description |
| Galvanized |
Zinc-coated for corrosion resistance (hot-dip or electro) |
| PVC Coated |
Plastic-coated for weather protection and safety |
| Black Annealed |
Heat-treated for ductility, soft surface for easy handling |
| Copper Plated |
Better conductivity and rust resistance (for electrical use) |
| Phosphated |
Enhances adhesion and corrosion resistance in concrete |
| Oiled / Dry |
To prevent rust and ease processing |
Packaging & Delivery
Bundled with plastic/cloth wrapping
Certifications & Compliance
-
ISO 9001 Certified Production
-
SGS / BV Third-party Inspection Available
-
ROHS, REACH, CE Compliance Available
-
Mill Test Certificate (MTC) Provided with Shipment
Steel wire is a critical industrial material made from various grades of steel, processed through cold drawing, heat treatment, shaping, or surface coating to meet diverse performance requirements. Steel wire is widely used in construction, automotive, electronics, power transmission, mechanical manufacturing, agriculture, and aerospace.
Steel wires differ in material composition, tensile strength, elasticity, corrosion resistance, and processing methods, and can be categorized into several subtypes based on function and application.
📌 Steel Wire Product Subcategories
1. Carbon Steel Wire
Carbon steel wire is manufactured from high- or low-carbon steel rods and is one of the most versatile and widely used wire types. It features high tensile strength, moderate corrosion resistance, and excellent formability, making it ideal for construction, nails, mesh, and rebar tying.
-
Material: Q195, Q235, 45#, 70#, 80#, 82B
-
Features: Economical, good strength, wide availability
-
Applications: Wire mesh, tie wire, nails, fencing, scaffolding wire
2. Alloy Steel Wire
Made from steel alloyed with elements like Cr (Chromium), Mo (Molybdenum), Ni (Nickel), and V (Vanadium) to improve specific properties such as hardness, strength, and fatigue resistance. Common in automotive, aerospace, and heavy machinery.
-
Grades: 9254, 9260, 4140, 9310
-
Features: Enhanced mechanical performance, heat resistance
-
Applications: Suspension springs, high-load fasteners, engine parts
3. Stainless Steel Wire
Contains a high proportion of chromium (≥10.5%), providing excellent corrosion and heat resistance. Suitable for applications exposed to moisture, chemicals, or high temperatures.
-
Grades: 304, 316, 302, 430
-
Features: Anti-rust, hygienic, durable
- Applications: Food processing, marine, medical, kitchenware, mesh
4. Cold-Drawn Steel Wire
Cold drawing improves surface finish, tensile strength, and dimensional accuracy. This wire type is used when precision and mechanical performance are important.
-
Features: High strength, smooth surface, tight tolerances
-
Applications: Precision springs, small mechanical parts, forming wire
5. Heat-Treated Steel Wire
Steel wire that has undergone heat processes like quenching, tempering, annealing or stress relief, enhancing toughness, fatigue life, and stability under stress.
-
Features: Better mechanical properties and structure
-
Applications: Suspension components, prestressed concrete tendons, automotive springs
6. Coated Steel Wire
Surface treatment such as zinc plating, PVC coating, phosphating, or oiling improves wire durability and protects it against corrosion and wear.
-
Types: Galvanized (hot-dip / electro), PVC coated, copper coated
-
Features: Weather-resistant, rustproof, UV-stable (PVC)
-
Applications: Fencing, vineyard wire, outdoor cables, armature wire
7. Shaped Steel Wire Rod
Steel wire formed into specific cross-sectional shapes such as square, flat, triangular, or custom profiles. Useful in fastener, automotive, or precision component manufacturing.
-
Features: High strength, customizable profiles, efficient for machining
-
Applications: Lock springs, rivets, clips, shaped fasteners
8. High-Strength Steel Wire
Wire designed with ultra-high tensile strength, often exceeding 1500 MPa. Offers excellent load-bearing and fatigue resistance.
-
Features: Very high tensile strength, tough under repeated stress
-
Applications: Bridge cables, prestressed concrete tendons, elevator cables
9. High Elastic Steel Wire
Engineered for superior elasticity, allowing repeated deformation without permanent shape change. Common in dynamic loading applications.
-
Features: Excellent spring-back, fatigue resistance
-
Applications: Spring coils, clips, mechanical springs, suspension systems
10. Wear-Resistant Steel Wire
Special alloy steel wire with surface hardness enhancements to resist abrasion, friction, and mechanical wear. Ideal for use in harsh, abrasive environments.
-
Features: High hardness, long wear life
-
Applications: Conveyor cables, mining equipment, high-friction components
🌐 General Features of Steel Wire Products
| Attribute |
Description |
| Diameter Range |
0.1 mm – 18 mm (customizable) |
| Processing Methods |
Hot rolling, cold drawing, heat treatment, coating |
| Surface Options |
Galvanized, black annealed, copper plated, PVC coated, phosphated |
| Standards |
ASTM A510, A82, GB/T 4357, JIS G3505, EN 10218, ISO 16120 |
| Packing |
Coils, spools, bundles with plastic film or waterproof wrapping |
| Certifications |
ISO 9001, SGS/BV Inspection, Mill Test Certificate (MTC), ROHS & REACH |
