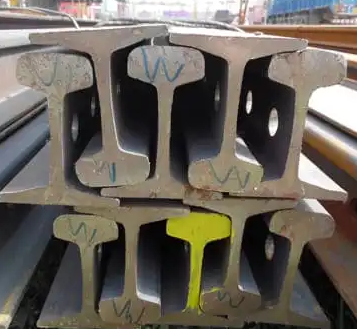

UIC60 Rail is mainly used for heavy load railroad, a very hot railroad track for sale. In France and Germany, it is widely used in high-speed railways. UIC60 rail has the characteristics of good ductility, high fatigue strength, and moderate fracture toughness. Its good chemical property enhances the performance and keeps the railroad tracks in good condition to a certain extent.
Email : iris@txdmetal.com
Phone/Whatsapp : +8615169002039
UIC60 Rail is mainly used for heavy load railroad, a very hot railroad track for sale. In France and Germany, it is widely used in high-speed railways. UIC60 rail has the characteristics of good ductility, high fatigue strength, and moderate fracture toughness. Its good chemical property enhances the performance and keeps the railroad tracks in good condition to a certain extent.

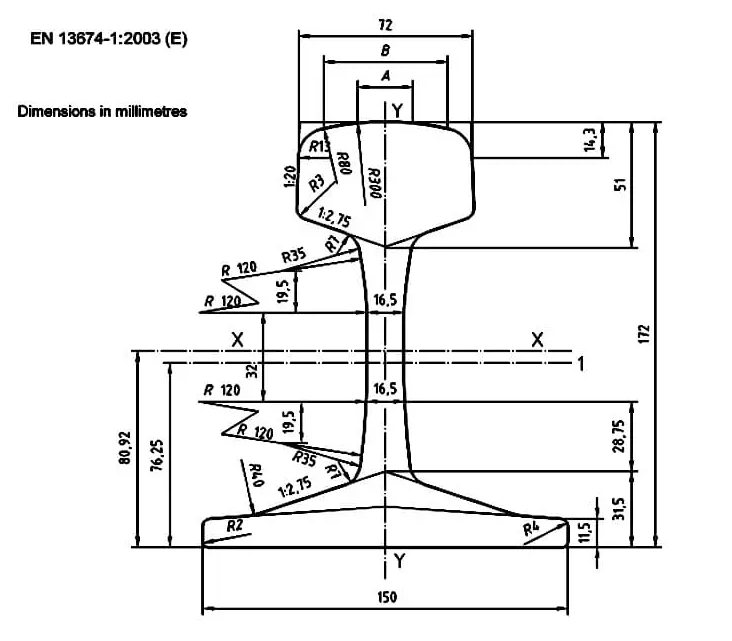

UIC60 rail is manufactured according to the rules set by the International Union of Railways. To be more specific, this type of rail uses the European Standard EN 13674-1. This European standard is for railroad rails of 46 kg/m and greater weight for railroad tracks. Nine pearlitic steel grades, ranging in hardness from 200 HBW to 440 HBW, are specified, including none non-heat-treated non-ox alloy steels, none heat-treated alloy steels, heat-treated none-alloy steels, and heat-treated alloy steels.
Head Width：72mm
Height：172mm
Base Width：150mm
The thickness of Web：16.5mm
Nominal Weight：60.21kg/m
Material：900A/1100
Length：12-25m
UIC60 chemical composition (elements in% of mass)
| ％ | C | Si | Mn | P | S |
|---|---|---|---|---|---|
| output | 0.72-0.74 | 0.23-0.27 | 1.10-1.16 | 0.014-0.023 | 0.005-0.011 |
| average | 0.73 | 0.25 | 1.14 | 0.018 | 0.006 |
UIC860/0 0.60-0.80 0.10-0.50 0.80-1.30 ≤0.040 ≤0.040
UIC60 Mechanical properties
| UIC60 | Tensile strength(Mpa) | Elongation (%) |
|---|---|---|
| Output | 920-980 | 12.0-15.0 |
| Average | 950 | 13.8 |
UIC860/0 880-1030 ≥10
| UIC860 Standard | |||||||
| Size | Dimension | Weight (kg/m) | Material | Length (m) | |||
| Head (mm) | Height (mm) | Base | Web | ||||
| UIC54 | 70 | 159 | 140 | 16 | 54.43 | 900A/1100 | 12-25 |
| UIC60 | 72 | 172 | 150 | 16.5 | 60.21 | 900A/1100 | 12-25 |
